Short description
High-Performance Mono Subwoofer Car Amplifier
Specification
JBL

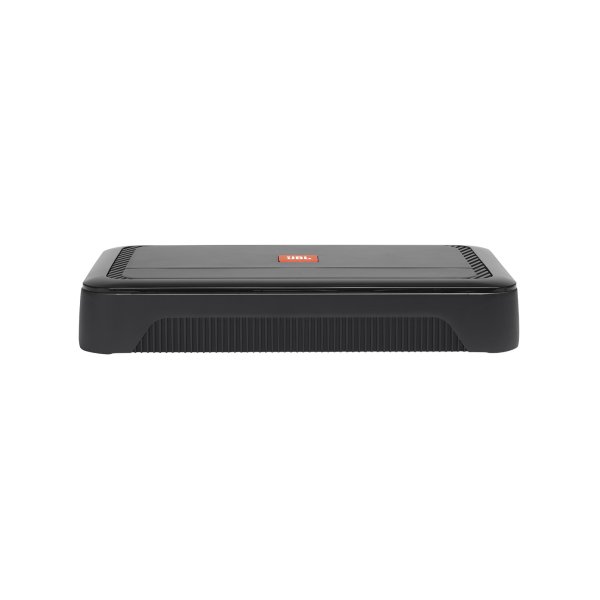

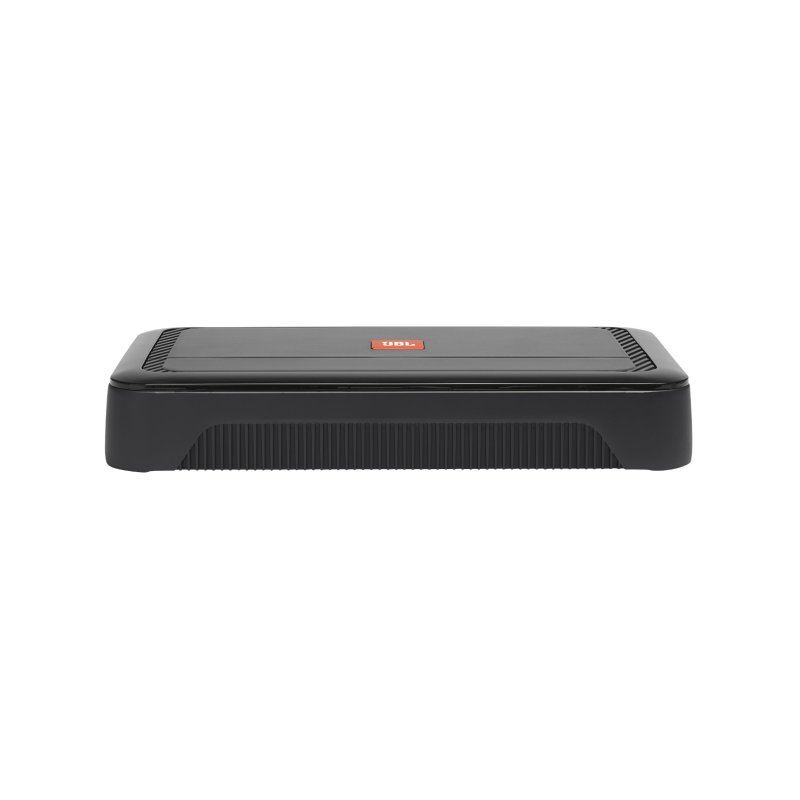

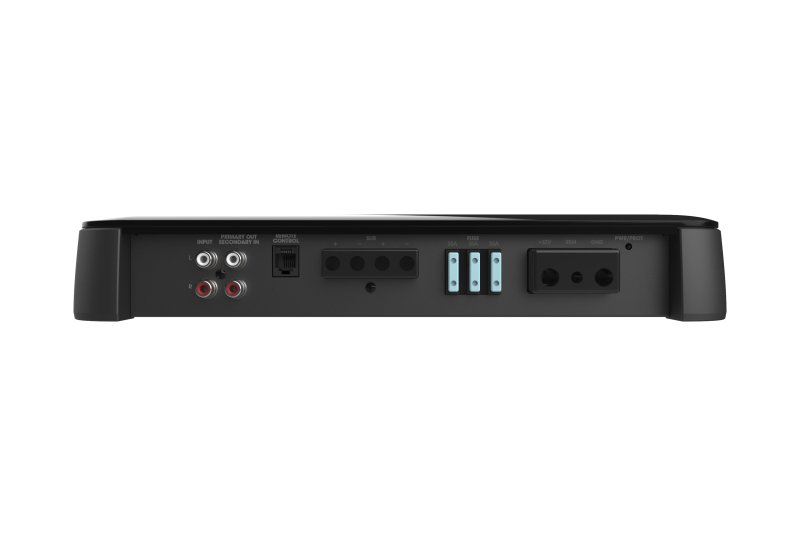

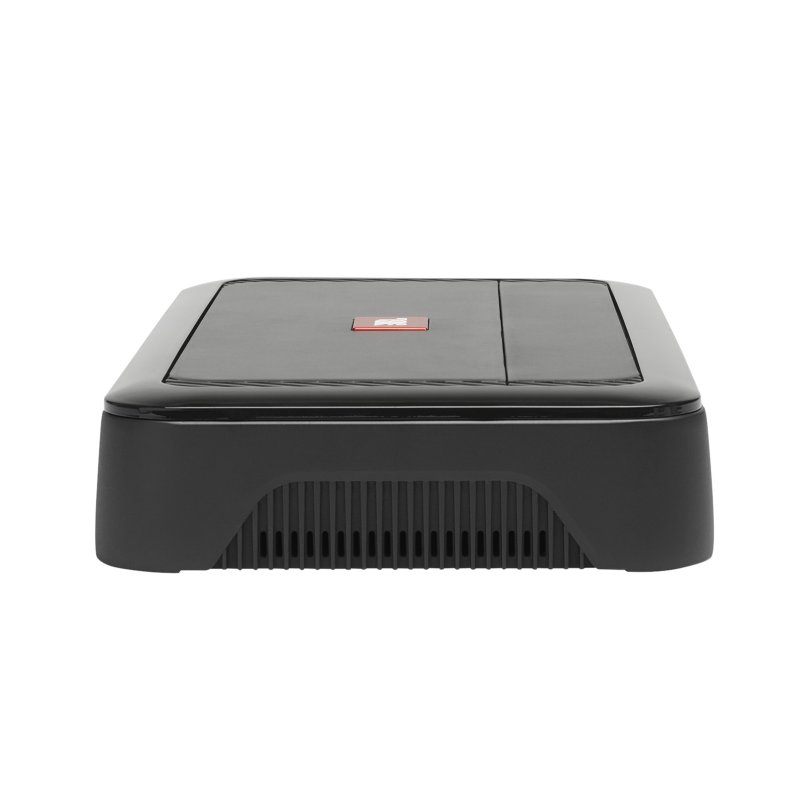

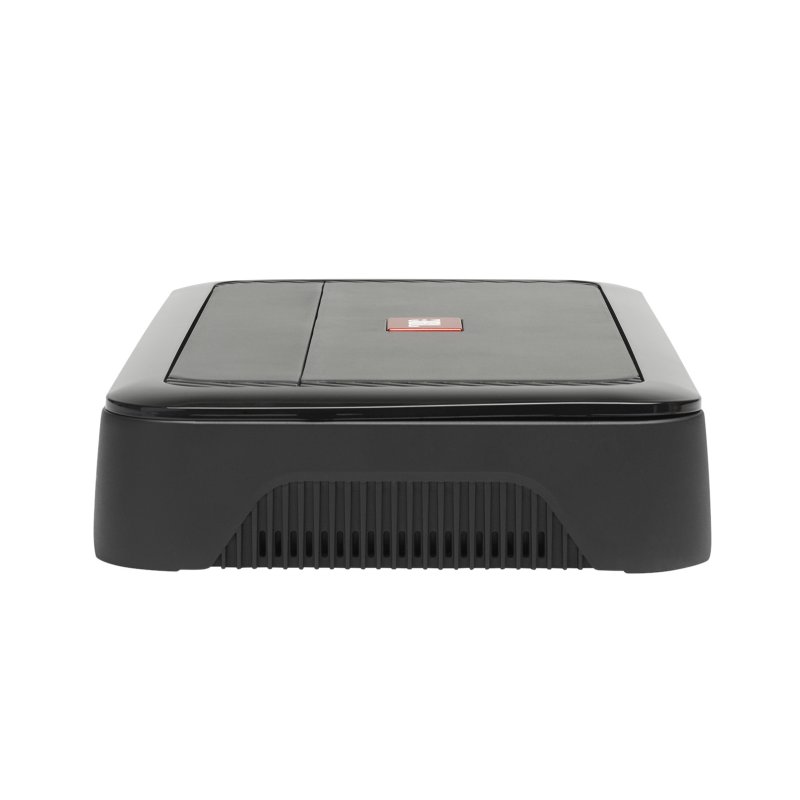

JBL Club A1000

Brand: JBL
Model: AMPCBA1000AM
UPC: 050036369183
Value engineered car amplifier with JBL power and performance
Please log in to see your price
Retail Price: $769.99
About This Product

Description:

The JBL Club A1000 mono subwoofer amplifier delivers 1000-Watts RMS using a Class D amplifier design to ensure high output and minimum current draw. Speaker-level inputs allow this amplifier to integrate into almost any system, even one using your car’s factory radio. You can use the low-pass filter and variable bass boost to maximize the performance of your subwoofer and enclosure, while a phase switch ensures that the bass will blend well with your full-range speakers.

Compact size

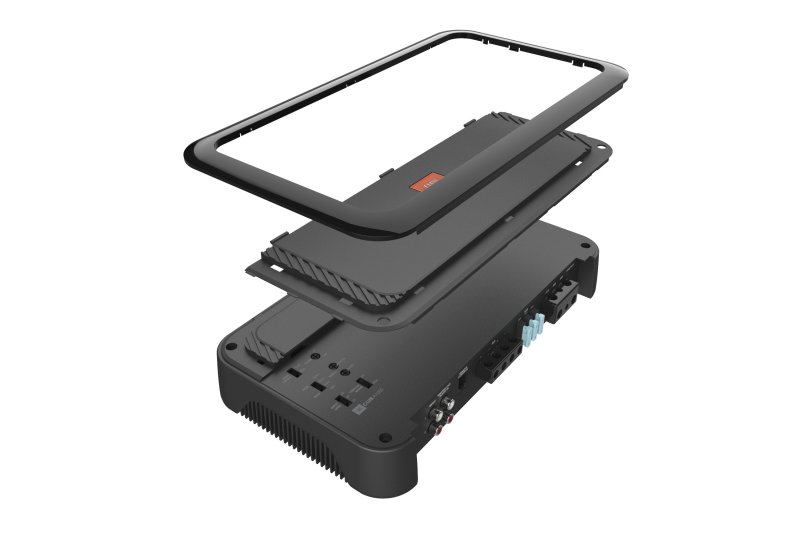

The JBL Club A1000 amplifier features a low-profile chassis and a small overall footprint to fit in more vehicles where available space is limited.

High and low level input
Speaker-level and low-level inputs allow the Club A1000 to integrate with both aftermarket and factory car stereo systems.

Variable crossover and bass boost
Unlike many amplifiers available at similar prices, the JBL Club A1000 features variable electronic crossovers and bass boost circuits allowing for precise system tuning and performance.

Low noise and distortion
The Club A1000 has been engineered using Balanced Differential Inputs to ensure low noise and distortion even at high output levels. This also makes it far less susceptible to line induced radiated engine noise.

Input Level Control
When low-level inputs are used, this control adjusts the input sensitivity between 200mVrms and 2.0 Vrms. When high-level inputs are used, this control adjusts the input sensitivity between 2Vrms and 20Vrms.

Full on-board protection
On-board circuitry protects the Club A1000 from shorts, high-temperature, overvoltage and undervoltage. An LED indicator is provided to let you know when one of these conditions exists.

Phase Switch
This switch changes the input phase to inverted or non-inverted. This is especially helpful as part of system tuning based on the enclosure type and location in the vehicle.

RBC wired remote
The RBC wired remote is an easy installation and can be mounted for convenient volume adjustment from driver’s seat.

Strappable for up to 2,000 watts of power at 4 ohms
Enable to strap two Club A1000 together to double your power, the Primary amp will be in absolute control of Secondary in terms of the crossover points, the gain and remote level control.

Class D amp technology
The JBL Club A1000 mono subwoofer amplifier delivers 1000-Watts RMS using a Class D amplifier design to ensure high output and minimum current draw.

Turn-on mode
This switch changes DC to REM to adapt with low-level signals or high-level signals, this is especially
helpful as part of remote turn-on lead of your installation more choice. A selectable “Turn-on mode” can protect battery to avoid current drain, when you don’t expect turn on your amplifier.

Specifications
  • Barcodes
  • UPC
  • 050036369183
  • Package Measurements & Shipping Weights
  • Case Pack
  • Each
  • 2
  • Each
  • Height In Inches
  • 9
  • Width Inches
  • 12.7
  • Length in Inches
  • 21.2
  • Pounds
  • 9
  • Cubic Feet
  • 1.4023
