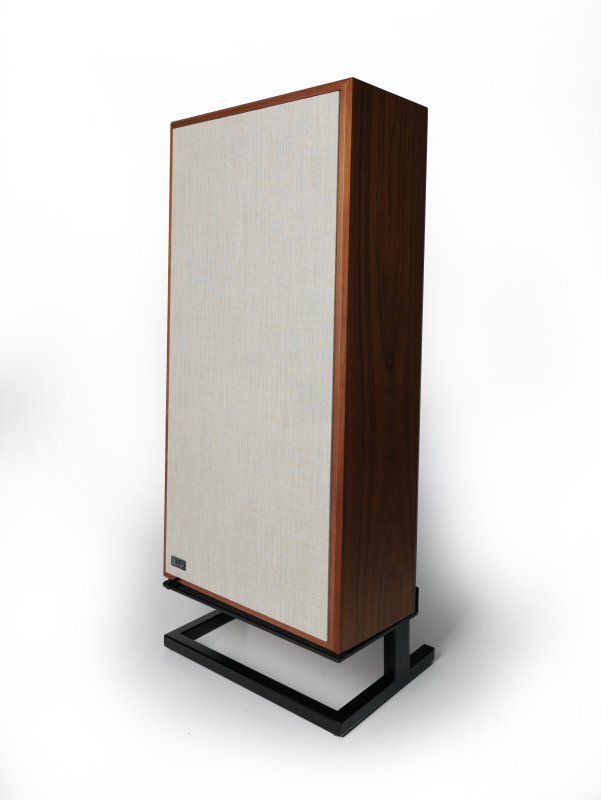

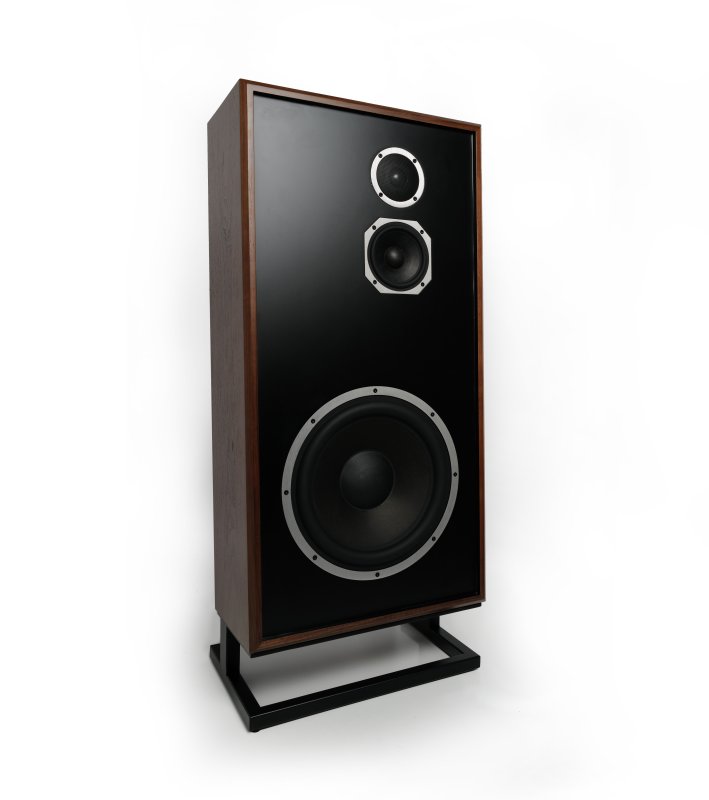

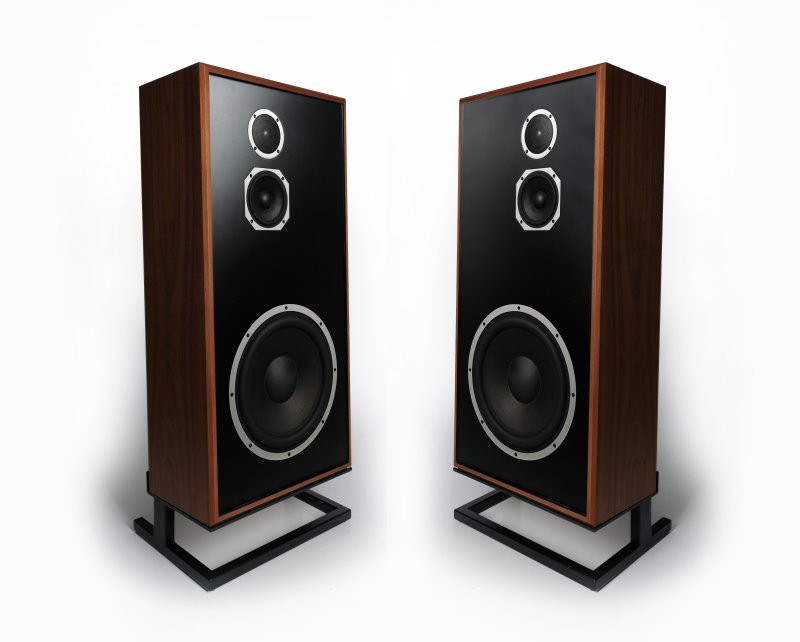

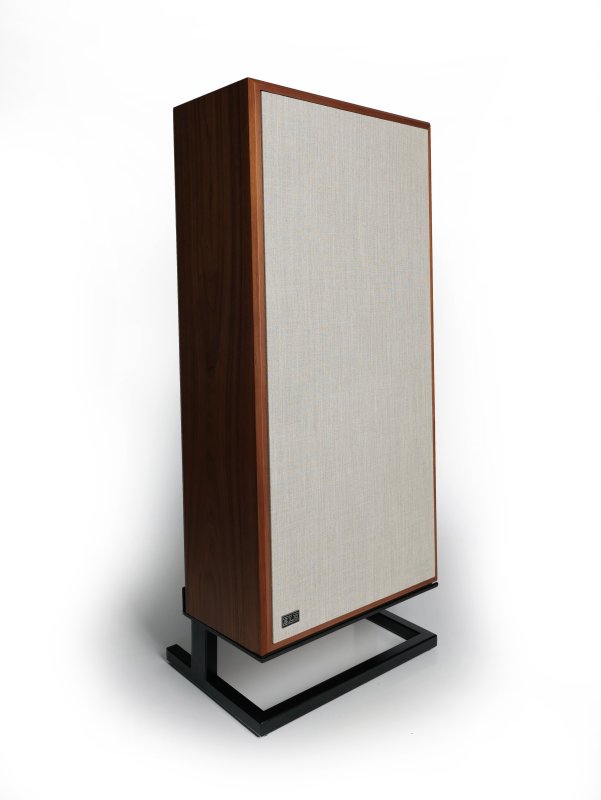

The KLH Model Seven is a 3-way, 13” acoustic suspension loudspeaker that builds on the legacy of the acclaimed Model Five. Designed for audiophiles, it features iconic mid-century modern styling with book-matched woodgrain veneers and a large front baffle for room-friendly placement. Its acoustic suspension design ensures accurate, linear sound. Key components include a high-displacement woofer, dedicated midrange driver, and machined aluminum tweeter faceplate. A 19-element crossover network and reinforced MDF cabinetry enhance performance. Each speaker includes a 3° slant steel riser base and a low-profile magnetic grille. The Model Seven is backed by a 10-year warranty.
- Iconic Mid-Century Modern Styling
- Acoustic Suspension Design – The most accurate and linear enclosure design available today
- Three-Position Acoustic Balance Control to tailor the loudspeaker’s output for the most difficult acoustic environments
- Dedicated midrange driver to reproduce the critical mid-frequency band
- 13" Pulp-Paper Cone Woofer with Reverse Roll Rubber Suspension and Die-Cast Aluminum Frame
- 5.25" Pulp-Paper Cone Midrange with Reverse Roll Rubber Suspension and Die-Cast Aluminum Frame
- 1" Aluminum Dome Tweeter with Soft Rubber Suspension
- KLH cabinetry featuring a structurally reinforced ¾” & 1" MDF enclosure
- Thirteen component network using high-quality iron-core inductors & Mylar capacitors
- 3° slant riser base made of powder coated 14-gauge steel (included with speaker purchase)
- Low-profile magnet attached grille
Frequency Response: 38Hz – 20,000Hz +/- 3dB
Power Handling: 250 Watts
In-Room Sensitivity: 91dB @2.83V / 1M
Impedance: 4 Ohms
Height: 41" (104.1cm) w/ Included Riser Base; 36.0" (91.4cm) w/o Riser Base
Width: 18" (45.7cm)
Depth: 12.25" (31.1cm) w/ Included Riser Base; 9.75" (24.8cm) w/o Riser Base
Weight: 78.8Ibs. (35.7kg) w/ Included Riser Base; 68lbs. (30.8kg) w/o Riser Base
Warranty: Ten years
